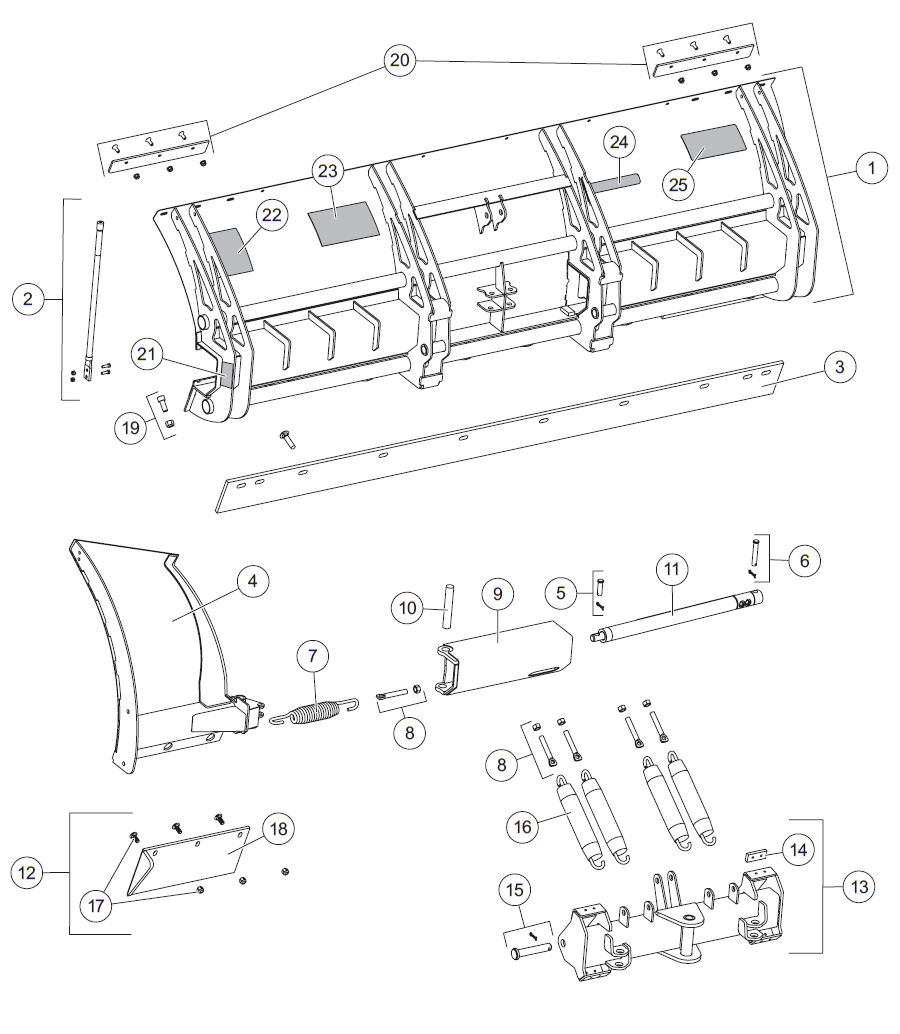

Wide-Out XL Blade Diagram

Mouse over or Tap Diagram to Zoom

Add parts to cart from list

1	Quick View Part # 81155 – BLADE, WIDEOUT XL $2,703.01 BLADE, WIDEOUT XL Part # 81155 - BLADE, WIDEOUT XL quantity
2	Quick View Part # 62595 – BLADE GUIDE ASSY POLY 24″ $39.00 BLADE GUIDE ASSY POLY 24" Part # 62595 - BLADE GUIDE ASSY POLY 24" quantity
3	Sale! Quick View Part # 63980 – 8.0′ CUTTING EDGE KIT – PP ~~$207.00~~ $186.30 8.0' CUTTING EDGE KIT Fits 8' Pro Plus Blades and Wide-Out XL Blades If you have a Wide-Out XL Blade, you may also need the wings which are Part Number 81141. Part # 63980 - 8.0' CUTTING EDGE KIT - PP quantity
4-DS	Quick View Part # 81156 – DS BLADE WING, W/ LABELS WO XL $779.72 DS BLADE WING, W/ LABELS WO XL Part # 81156 - DS BLADE WING, W/ LABELS WO XL quantity
4-PS	Quick View Part # 81158 – PS BLADE WING, W/LABELS WO XL $779.72 PS BLADE WING, W/LABELS WO XL Part # 81158 - PS BLADE WING, W/LABELS WO XL quantity
5	Sale! Quick View Part # 50651 – PIN KIT, 5/8″ X 2″ ~~$6.46~~ $6.14 PIN KIT, 5/8" X 2" Part # 50651 - PIN KIT, 5/8" X 2" quantity
6	Sale! Quick View Part # 50653 – PIN KIT, 5/8″ X 3-1/2″ ~~$7.48~~ $7.11 PIN KIT, 5/8" X 3-1/2" Part # 50653 - PIN KIT, 5/8" X 3-1/2" quantity
7	Sale! Quick View Part # 50654 – WING SPRING ~~$50.58~~ $48.05 WING SPRING Part # 50654 - WING SPRING quantity
8	Quick View Part # 66421 – 5/8-11X4 EYEBOLT KIT $9.82 5/8-11X4 EYEBOLT KIT Part # 66421 - 5/8-11X4 EYEBOLT KIT quantity
9-DS	Quick View Part # 81167 – SLIDE BOX WP DS $244.09 SLIDE BOX WP DS Part # 81167 - SLIDE BOX WP DS quantity
9-PS	Quick View Part # 81168 – SLIDE BOX WP PS $244.09 SLIDE BOX WP PS Part # 81168 - SLIDE BOX WP PS quantity
10	Sale! Quick View Part # 50660 – WING PIN ~~$30.61~~ $29.08 WING PIN Part # 50660 - WING PIN quantity
11	Sale! Quick View Part # 94491 – RAM ASSY 1-1/2X16-15/16 DA ~~$415.85~~ $395.06 RAM ASSY 1-1/2X16-15/16 DA Part # 94491 - RAM ASSY 1-1/2X16-15/16 DA quantity
12	Quick View Part # 81141 – KIT, CUTTING EDGE $202.00 STEEL WING CUTTING EDGE KIT - STANDARD - WIDE-OUT XL INCLUDES BOTH SIDES Part # 81141 - KIT, CUTTING EDGE quantity
13	Sale! Quick View Part # 92984 – QUADRANT ASSY, FLARED WING WO ~~$504.22~~ $479.01 QUADRANT ASSY, FLARED WING WO Part # 92984 - QUADRANT ASSY, FLARED WING WO quantity
14	Quick View Part # 63976 – PUSH STOP KIT $14.83 PUSH STOP KIT Part # 63976 - PUSH STOP KIT quantity
15	Quick View Part # 50677 – PIN KIT $12.76 PIN KIT Part # 50677 - PIN KIT quantity
16	Quick View Part # 23039 – TRIP SPRING $13.90 TRIP SPRING Part # 23039 - TRIP SPRING quantity
17	Quick View Part # 11010 – WO ST WING HARDWARE KIT FULL $7.28 WO ST WING HARDWARE KIT FULL Part # 11010 - WO ST WING HARDWARE KIT FULL quantity
18-DS	Quick View Part # 95060 – EDGE, CUTTING WING DS $150.00 EDGE, CUTTING WING DS Part # 95060 - EDGE, CUTTING WING DS quantity
18-PS	Quick View Part # 95061 – EDGE, CUTTING WING PS $150.00 EDGE, CUTTING WING PS Part # 95061 - EDGE, CUTTING WING PS quantity
19	Sale! Quick View Part # 50661 – STOP BOLT KIT ~~$7.99~~ $7.59 STOP BOLT KIT Part # 50661 - STOP BOLT KIT quantity
20	Quick View Western Part # 77473 $45.51 WIDE-OUT XL WEAR STRIP KIT Western Part # 77473 quantity
21	Sale! Quick View Part # 29593 – LABEL, MULTIPLE PINCH POINTS ~~$2.55~~ $2.42 LABEL, MULTIPLE PINCH POINTS Part # 29593 - LABEL, MULTIPLE PINCH POINTS quantity
22	Quick View Part # 59900 – L WARNING/CAUTION – SNOWPLOWS Call For Price L WARNING/CAUTION - SNOWPLOWS Part # 59900 - L WARNING/CAUTION - SNOWPLOWS quantity
23	Quick View Part # 43360 – L ATTACH/DETACH ULTRAMOUNT 2 $4.77 L ATTACH/DETACH ULTRAMOUNT 2 Part # 43360 - L ATTACH/DETACH ULTRAMOUNT 2 quantity
24	Quick View Part # 28404 – LABEL-IDENTITY ULTRAFINISH $1.19 LABEL-IDENTITY ULTRAFINISH Part # 28404 - LABEL-IDENTITY ULTRAFINISH quantity
25	Quick View Part # 44451 – LABEL, IDENTITY WESTERN 8.31 $3.33 LABEL, IDENTITY WESTERN 8.31 Part # 44451 - LABEL, IDENTITY WESTERN 8.31 quantity

Wide-Out XL Blade Diagram

Mouse over or Tap Diagram to Zoom

Add parts to cart from list

1

2

3

4-DS

4-PS

5

6

7

8

9-DS

9-PS

10

11

12

13

14

15

16

17

18-DS

18-PS

19

20

21

22

23

24

25
