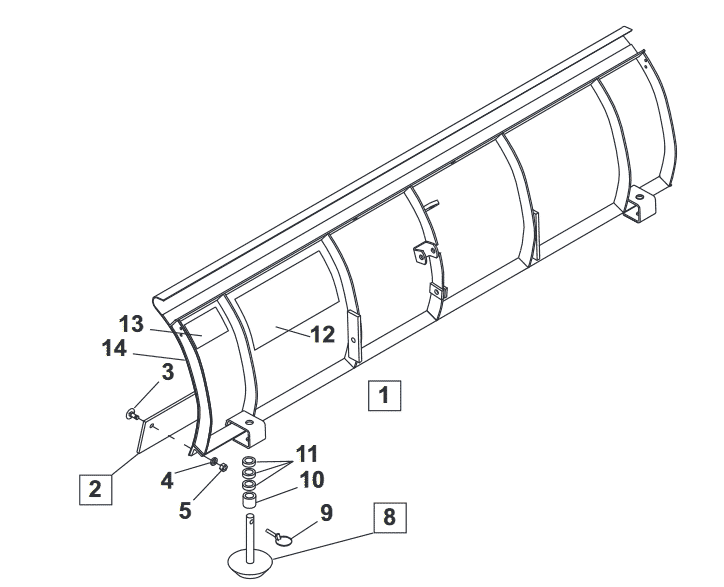

UniMount Pro-Plow Steel Blade Diagram

Mouse over or Tap Diagram to Zoom

Add parts to cart from list

2	Sale! Quick View Part # 49088 – CUTTING EDGE ASSY 7-1/2′ S P ~~$139.00~~ $125.10 CUTTING EDGE ASSY 7-1/2' S P Part # 49088 - CUTTING EDGE ASSY 7-1/2' S P quantity Sale! Quick View Part # 49089 – CUTTING EDGE ASSY 8′ P ~~$184.00~~ $165.60 CUTTING EDGE ASSY 8' P Part # 49089 - CUTTING EDGE ASSY 8' P quantity Quick View Part # 49086 – CUTTING EDGE ASSY 8-1/2′ P $336.00 CUTTING EDGE ASSY 8-1/2' P Part # 49086 - CUTTING EDGE ASSY 8-1/2' P quantity Sale! Quick View Part # 49251 – CUTTING EDGE ASSY 9′ P ~~$221.00~~ $198.90 CUTTING EDGE ASSY 9' P Part # 49251 - CUTTING EDGE ASSY 9' P quantity
3	Sale! Quick View Part # 90238 – 1/2-13X1-3/4 CARRIAGE BOLT G8 ~~$4.03~~ $3.83 1/2-13X1-3/4 CARRIAGE BOLT G8 Part # 90238 - 1/2-13X1-3/4 CARRIAGE BOLT G8 quantity
4	Sale! Quick View Part # 91205 – LOCKWASHER_1/2 SPRING ~~$1.59~~ $1.51 LOCKWASHER_1/2 SPRING Part # 91205 - LOCKWASHER_1/2 SPRING quantity
5	Sale! Quick View Part # 90337 – HEX NUT_1/2-13 G5 ~~$2.40~~ $2.28 HEX NUT_1/2-13 G5 Part # 90337 - HEX NUT_1/2-13 G5 quantity
8	Quick View Part # 49071 – HD DISC SHOE $52.68 Heavy Duty Western Skid Shoe (Single Shoe) Part # 49071 - HD DISC SHOE quantity
9	Quick View Part # 93010K – LINCH PIN 7/16″X1-3/4″ 2 PACK $1.85 LINCH PIN 7/16"X1-3/4" 2 PACK Part # 93010K - LINCH PIN 7/16"X1-3/4" 2 PACK quantity
10	Sale! Quick View Part # 60045 – SPACER ~~$3.67~~ $3.49 SPACER Part # 60045 - SPACER quantity
11	Quick View Part # 49071 – HD DISC SHOE $52.68 Heavy Duty Western Skid Shoe (Single Shoe) Part # 49071 - HD DISC SHOE quantity
12	Quick View Part # 61740 – L UNIMOUNT ATTACH/DETACH $9.51 L UNIMOUNT ATTACH/DETACH Part # 61740 - L UNIMOUNT ATTACH/DETACH quantity
13	Quick View Part # 59900 – L WARNING/CAUTION – SNOWPLOWS Call For Price L WARNING/CAUTION - SNOWPLOWS Part # 59900 - L WARNING/CAUTION - SNOWPLOWS quantity
14	Quick View Part # 44450 – LABEL – IDENTITY WESTERN 13.75 $7.88 LABEL - IDENTITY WESTERN 13.75 Part # 44450 - LABEL - IDENTITY WESTERN 13.75 quantity
