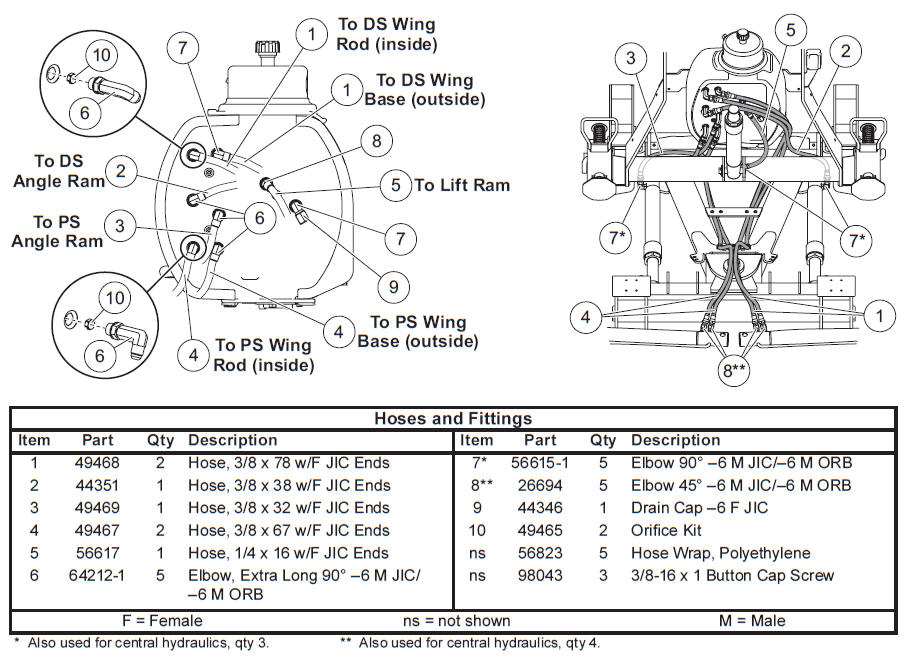

Wide-Out Gen-2 & XL Hoses & Fittings Diagram

Mouse over or Tap Diagram to Zoom

Add parts to cart from list

1

$51.85

HOSE 3/8" X 78" W/FJIC

2

$32.60

HOSE 3/8 X 38

3

$35.74

HOSE 3/8" X 32" W/FJIC ENDS

4

$47.85

HOSE 3/8" X 67" KIT

5

$27.01

HOSE KIT 1/4 X 16 W/FJIC ENDS

6

$13.56

ELBOW KIT LONG 90DEG-6

7

Sale!
$4.25 $4.04

ELBOW 90DEG-6 MO-RING/MJIC

8

$15.31

ELBOW KIT 45DEG-6 MO-RING/MJIC

9

$11.73

CAP -6 SAE FLARED TUBE

10

Sale!
$8.66 $8.23

ORIFICE KIT
