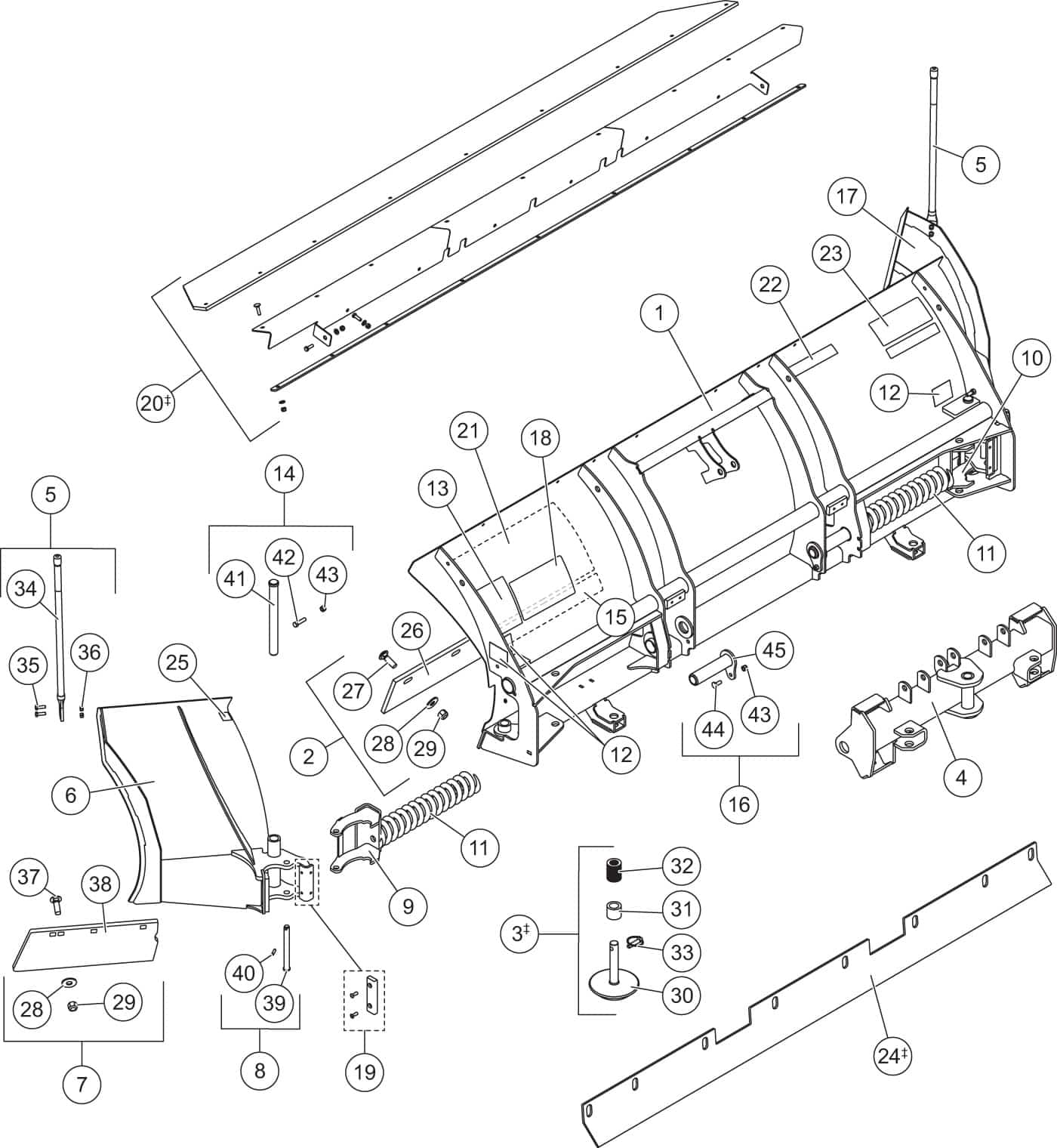

Prodigy Blade & Quadrant Diagram

Mouse over or Tap Diagram to Zoom

Add parts to cart from list

1	Not Available
2	View Cutting Edge
3	Quick View Part # 49853 – SHOE KIT $126.00 SHOE KIT Part # 49853 - SHOE KIT quantity
4	Quick View Part # 49769 – QUAD, SELLABLE $419.55 QUAD, SELLABLE Part # 49769 - QUAD, SELLABLE quantity
5	Quick View Part # 62595 – BLADE GUIDE ASSY POLY 24″ $39.00 BLADE GUIDE ASSY POLY 24" Part # 62595 - BLADE GUIDE ASSY POLY 24" quantity
6	Quick View Part # 41751 – WING DS PRODIGY $488.05 WING DS PRODIGY Part # 41751 - WING DS PRODIGY quantity
7	Sale! Quick View Part # 42383 – WING CUTTING EDGE KIT ~~$272.00~~ $244.80 PRODIGY WING CUTTING EDGE KIT - INCLUDES BOTH SIDES & HARDWARE Part # 42383 - WING CUTTING EDGE KIT quantity
8	Quick View Part # 42397 – SPRING GUIDE PIN KIT $15.18 SPRING GUIDE PIN KIT Part # 42397 - SPRING GUIDE PIN KIT quantity
9	Quick View Part # 42392 – SPRING GUIDE DS $75.89 SPRING GUIDE DS Part # 42392 - SPRING GUIDE DS quantity
10	Quick View Part # 42393 – SPRING GUIDE PS $75.89 SPRING GUIDE PS Part # 42393 - SPRING GUIDE PS quantity
11	Sale! Quick View Part # 42725 – SPRING – 900 LB/IN ~~$107.52~~ $102.14 SPRING - 900 LB/IN Part # 42725 - SPRING - 900 LB/IN quantity
12	Sale! Quick View Part # 29593 – LABEL, MULTIPLE PINCH POINTS ~~$2.55~~ $2.42 LABEL, MULTIPLE PINCH POINTS Part # 29593 - LABEL, MULTIPLE PINCH POINTS quantity
13	Quick View Part # 59900 – L WARNING/CAUTION – SNOWPLOWS Call For Price L WARNING/CAUTION - SNOWPLOWS Part # 59900 - L WARNING/CAUTION - SNOWPLOWS quantity
14	Sale! Quick View Part # 42396 – HINGE PIN KIT ~~$28.46~~ $27.04 HINGE PIN KIT Part # 42396 - HINGE PIN KIT quantity
15	Quick View Part # 43175 – L IDENTITY PRODIGY MOLDBOARD $7.34 L IDENTITY PRODIGY MOLDBOARD Part # 43175 - L IDENTITY PRODIGY MOLDBOARD quantity
16	Quick View Part # 42531 – PIVOT BUSHING KIT $39.05 PIVOT BUSHING KIT Part # 42531 - PIVOT BUSHING KIT quantity
17	Quick View Part # 41752 – WING PS PRODIGY $488.05 WING PS PRODIGY Part # 41752 - WING PS PRODIGY quantity
18	Quick View Part # 43360 – L ATTACH/DETACH ULTRAMOUNT 2 $4.77 L ATTACH/DETACH ULTRAMOUNT 2 Part # 43360 - L ATTACH/DETACH ULTRAMOUNT 2 quantity
19	Sale! Quick View Part # 42395 – BUMPER KIT ~~$15.18~~ $14.42 BUMPER KIT Part # 42395 - BUMPER KIT quantity
20	Sale! Quick View Part # 42384 – DEFLECTOR KIT ~~$316.00~~ $300.20 DEFLECTOR KIT Part # 42384 - DEFLECTOR KIT quantity
21	Quick View Part # 40986 – L CONTRACTOR GRADE – MOLDBOARD $14.50 L CONTRACTOR GRADE - MOLDBOARD Part # 40986 - L CONTRACTOR GRADE - MOLDBOARD quantity
22	Quick View Part # 28404 – LABEL-IDENTITY ULTRAFINISH $1.19 LABEL-IDENTITY ULTRAFINISH Part # 28404 - LABEL-IDENTITY ULTRAFINISH quantity
23	Quick View Part # 44451 – LABEL, IDENTITY WESTERN 8.31 $3.33 LABEL, IDENTITY WESTERN 8.31 Part # 44451 - LABEL, IDENTITY WESTERN 8.31 quantity
24	Quick View Part # 42437 – BACKDRAG EDGE $147.00 BACKDRAG EDGE Part # 42437 - BACKDRAG EDGE quantity
25	Quick View Part # 43528 – WEAR STRIP – WING TOP $3.55 WEAR STRIP - WING TOP Part # 43528 - WEAR STRIP - WING TOP quantity
26	Sale! Quick View Part # 49799 – CUTTING EDGE KIT- ADJ WING ~~$212.00~~ $190.80 CUTTING EDGE KIT- ADJ WING Part # 49799 - CUTTING EDGE KIT- ADJ WING quantity
27	5/8‑11 x 2‑1/2 Carriage Bolt G5
28	5/8 Hardened Flat Washer
29	5/8‑11 Hex Locknut
30	Quick View Part # 49853 – SHOE KIT $126.00 SHOE KIT Part # 49853 - SHOE KIT quantity
31	1‑1/8 ID, 1‑5/8 OD x 1‑1/2 Spacer
32	Flat Washer
33	7/16 x 1‑3/4 Linchpin
34	Quick View Part # 62595 – BLADE GUIDE ASSY POLY 24″ $39.00 BLADE GUIDE ASSY POLY 24" Part # 62595 - BLADE GUIDE ASSY POLY 24" quantity
35	5/16‑18 x 1 Hex Cap Screw G5
36	5/16‑18 Hex Locknut
37	5/8‑11 x 2 Carriage Bolt G5
38	Sale! Quick View Part # 42383 – WING CUTTING EDGE KIT ~~$272.00~~ $244.80 PRODIGY WING CUTTING EDGE KIT - INCLUDES BOTH SIDES & HARDWARE Part # 42383 - WING CUTTING EDGE KIT quantity
39	Quick View Part # 42397 – SPRING GUIDE PIN KIT $15.18 SPRING GUIDE PIN KIT Part # 42397 - SPRING GUIDE PIN KIT quantity
40	Quick View Part # 42397 – SPRING GUIDE PIN KIT $15.18 SPRING GUIDE PIN KIT Part # 42397 - SPRING GUIDE PIN KIT quantity
41	Sale! Quick View Part # 42396 – HINGE PIN KIT ~~$28.46~~ $27.04 HINGE PIN KIT Part # 42396 - HINGE PIN KIT quantity
42	3/8‑16 x 1‑1/2 Hex Cap Screw G5
43	3/8‑16 Hex Locknut GB
44	3/8‑16 x 1 Carriage Bolt G5
45	Quick View Part # 42531 – PIVOT BUSHING KIT $39.05 PIVOT BUSHING KIT Part # 42531 - PIVOT BUSHING KIT quantity
