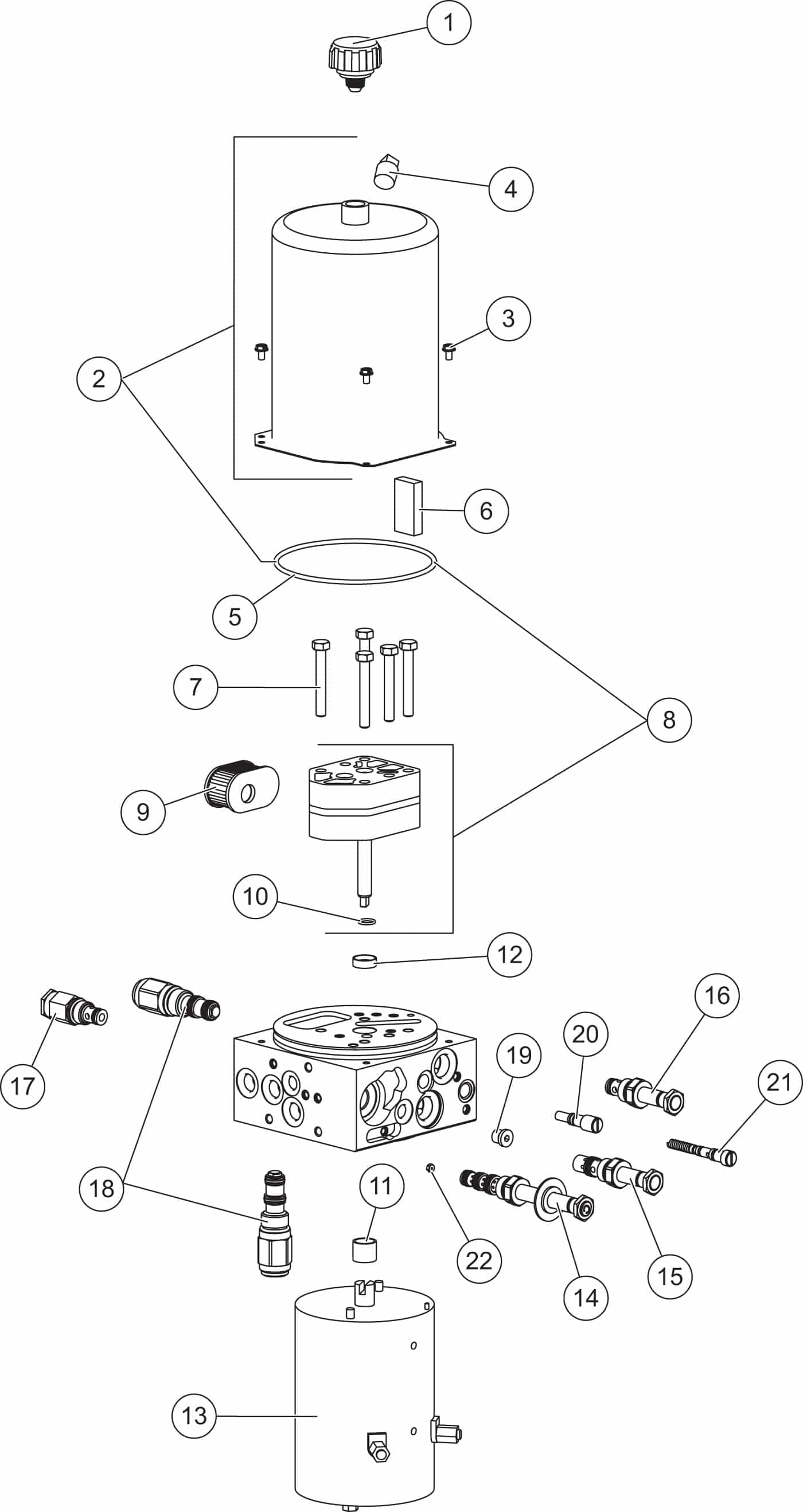

Prodigy Hydraulic Unit Diagram

Mouse over or Tap Diagram to Zoom

Add parts to cart from list

1	Quick View Part # 21727-2K – BREATHER 3/8 NPT KIT $36.33 BREATHER 3/8 NPT KIT Part # 21727-2K - BREATHER 3/8 NPT KIT quantity
2	Sale! Quick View Part # 44327-3 – RESERVOIR KIT ~~$61.53~~ $58.45 RESERVOIR KIT Part # 44327-3 - RESERVOIR KIT quantity
3	Sale! Quick View Part # 66607 – 10-24X5/16 MACHINE SCREW ~~$1.15~~ $1.09 10-24X5/16 MACHINE SCREW Part # 66607 - 10-24X5/16 MACHINE SCREW quantity
4	Sale! Quick View Part # 92079 – PLUG 3/8 NPTF SQ ~~$2.58~~ $2.45 PLUG 3/8 NPTF SQ Part # 92079 - PLUG 3/8 NPTF SQ quantity
5	Sale! Quick View Part # 66519 – O-RING 2-250 ~~$8.12~~ $7.71 O-RING 2-250 Part # 66519 - O-RING 2-250 quantity
6	Sale! Quick View Part # 73897 – MAGNET ~~$4.40~~ $4.18 MAGNET Part # 73897 - MAGNET quantity
7	Sale! Quick View Part # 90073 – HEXCAPSCREW_5/16-18X2-1/4 G5 ~~$1.78~~ $1.69 HEXCAPSCREW_5/16-18X2-1/4 G5 Part # 90073 - HEXCAPSCREW_5/16-18X2-1/4 G5 quantity
8	Quick View Part # 42887 – PUMP KIT – WESTERN PRODIGY $143.48 This is a Factory OEM Western / Fisher Hydraulic Pump Kit for the Western Prodigy Part # 42887 - PUMP KIT - WESTERN PRODIGY quantity
9	Quick View Part # 56789-5 – SUCTION FILTER $14.84 SUCTION FILTER Part # 56789-5 - SUCTION FILTER quantity
10	Sale! Quick View Part # 56274 – O-RING – 013 ~~$1.85~~ $1.76 O-RING - 013 Part # 56274 - O-RING - 013 quantity
11	Sale! Quick View Part # 64596-1 – SLEEVE BEARING &SHAFT SEAL KIT ~~$12.00~~ $11.40 SLEEVE BEARING &SHAFT SEAL KIT Part # 64596-1 - SLEEVE BEARING &SHAFT SEAL KIT quantity
12	Sale! Quick View Part # 66515 – PUMP SHAFT SEAL ~~$6.89~~ $6.55 PUMP SHAFT SEAL Part # 66515 - PUMP SHAFT SEAL quantity
13	Quick View Part # 21500-1 – MOTOR ASSY 4-1/2″ – FS $200.52 Factory OEM Fisher / Western Electric Motor Part # 21500-1 - MOTOR ASSY 4-1/2" - FS quantity
14	Quick View Part # 48291 – VALVE 4-WAY 3 POSITION CLOSED $119.25 VALVE 4-WAY 3 POSITION CLOSED Part # 48291 - VALVE 4-WAY 3 POSITION CLOSED quantity
15	Quick View Part # 44332 – VALVE SVCV08-20 W/ NUT $127.69 VALVE SVCV08-20 W/ NUT Part # 44332 - VALVE SVCV08-20 W/ NUT quantity
16	Quick View Part # 49227K-2 – VALVE 2-WAY W/NUT – SV08-2004 $61.87 Factory OEM Western / Fisher Valve 2-Way With Nut Part # 49227K-2 - VALVE 2-WAY W/NUT - SV08-2004 quantity
17	Quick View Part # 42889 – RELIEF VALVE $92.32 RELIEF VALVE Part # 42889 - RELIEF VALVE quantity
18	Quick View Part # 42888 – COUNTERBALANCE VALVE $170.63 COUNTERBALANCE VALVE Part # 42888 - COUNTERBALANCE VALVE quantity
19	Sale! Quick View Part # 44344 – PLUG, HEX SOCKET -4 M ORB ~~$2.12~~ $2.01 PLUG, HEX SOCKET -4 M ORB Part # 44344 - PLUG, HEX SOCKET -4 M ORB quantity
20	Sale! Quick View Part # 48517 – QUILL ~~$40.54~~ $38.51 QUILL Part # 48517 - QUILL quantity
21	Quick View Part # 49138K-5 – RELIEF VALVE KIT – 2 SETS $15.26 Factory OEM Western / Fisher Relief Valve Kit Part # 49138K-5 - RELIEF VALVE KIT - 2 SETS quantity
22	Quick View Part # 43370 – ORIFICE DISC .100 $9.08 ORIFICE DISC .100 Part # 43370 - ORIFICE DISC .100 quantity

Prodigy Hydraulic Unit Diagram

Mouse over or Tap Diagram to Zoom

Add parts to cart from list

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22
