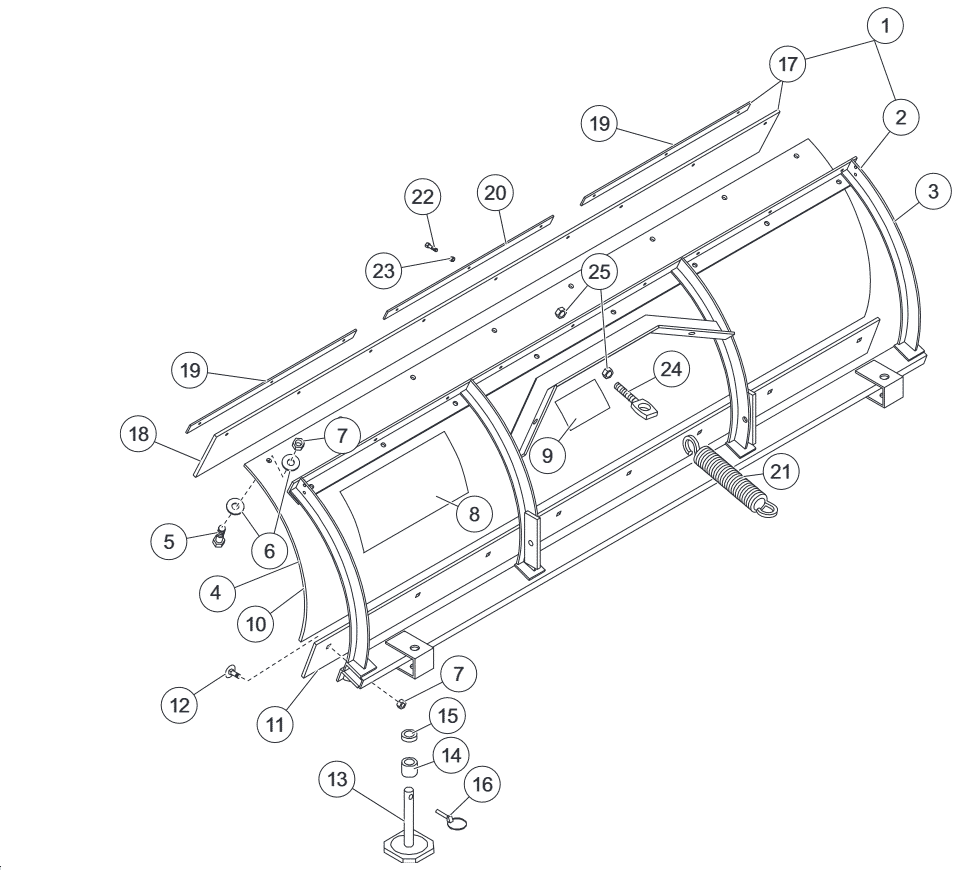

Standard Poly Blade Diagram

Add parts to cart from list

1
2
3
4
5	Sale! Quick View Part # 90101 – HEXCAPSCREW_1/2-13X1-3/4 G5 ~~$2.94~~ $2.79 HEXCAPSCREW_1/2-13X1-3/4 G5 Part # 90101 - HEXCAPSCREW_1/2-13X1-3/4 G5 quantity
6	Sale! Quick View Part # 91105 – FLATWASHER_1/2 TYPE A WIDE ~~$2.15~~ $2.04 FLATWASHER_1/2 TYPE A WIDE Part # 91105 - FLATWASHER_1/2 TYPE A WIDE quantity
7	Sale! Quick View Part # 91335 – HEXLOCKNUT_1/2-13 GB TOPRING ~~$4.05~~ $3.85 HEXLOCKNUT_1/2-13 GB TOPRING Part # 91335 - HEXLOCKNUT_1/2-13 GB TOPRING quantity
8	Sale! Quick View Part # 67796 – L ATTACH/DETACH ULTRAMOUNT ~~$3.15~~ $2.99 L ATTACH/DETACH ULTRAMOUNT Part # 67796 - L ATTACH/DETACH ULTRAMOUNT quantity
9	Quick View Part # 59900 – L WARNING/CAUTION – SNOWPLOWS $4.99 L WARNING/CAUTION - SNOWPLOWS Part # 59900 - L WARNING/CAUTION - SNOWPLOWS quantity
10	Sale! Quick View Part # 44450 – LABEL – IDENTITY WESTERN 13.75 ~~$5.25~~ $4.99 LABEL - IDENTITY WESTERN 13.75 Part # 44450 - LABEL - IDENTITY WESTERN 13.75 quantity
11	Sale! Quick View Part # 49350 – CUTTING EDGE ASSY 7.5’SPY 1/2″ ~~$205.00~~ $184.50 CUTTING EDGE ASSY 7.5'SPY 1/2" Part # 49350 - CUTTING EDGE ASSY 7.5'SPY 1/2" quantity
12	Sale! Quick View Part # 90238 – 1/2-13X1-3/4 CARRIAGE BOLT G8 ~~$3.97~~ $3.77 1/2-13X1-3/4 CARRIAGE BOLT G8 Part # 90238 - 1/2-13X1-3/4 CARRIAGE BOLT G8 quantity
13	Sale! Quick View Part # 49067 – DISC SHOE ASSY ~~$25.74~~ $24.45 DISC SHOE ASSY Part # 49067 - DISC SHOE ASSY quantity
14	Sale! Quick View Part # 60045 – SPACER ~~$3.56~~ $3.38 SPACER Part # 60045 - SPACER quantity
15	Sale! Quick View Part # 49067 – DISC SHOE ASSY ~~$25.74~~ $24.45 DISC SHOE ASSY Part # 49067 - DISC SHOE ASSY quantity
16	Sale! Quick View Part # 93010K – LINCH PIN 7/16″X1-3/4″ 2 PACK ~~$1.82~~ $1.73 LINCH PIN 7/16"X1-3/4" 2 PACK Part # 93010K - LINCH PIN 7/16"X1-3/4" 2 PACK quantity
17	Sale! Quick View Part # 62311 – 7-1/2 FT SNOW DEFLECTOR ASSY ~~$285.61~~ $257.05 7-1/2 FT SNOW DEFLECTOR ASSY Part # 62311 - 7-1/2 FT SNOW DEFLECTOR ASSY quantity
18	Sale! Quick View Part # 62311 – 7-1/2 FT SNOW DEFLECTOR ASSY ~~$285.61~~ $257.05 7-1/2 FT SNOW DEFLECTOR ASSY Part # 62311 - 7-1/2 FT SNOW DEFLECTOR ASSY quantity
19	Sale! Quick View Part # 64803 – RETAINER OUTER – 7.5′ ~~$17.75~~ $16.87 RETAINER OUTER - 7.5' Part # 64803 - RETAINER OUTER - 7.5' quantity
20	Sale! Quick View Part # 64802 – RETAINER INNER ~~$15.16~~ $14.40 RETAINER INNER Part # 64802 - RETAINER INNER quantity
21	Sale! Quick View Part # 23039 – TRIP SPRING ~~$13.74~~ $13.06 TRIP SPRING Part # 23039 - TRIP SPRING quantity
22	5/16‑18 x 1‑1/4 Hex Cap Screw G5
23	5/16‑18 Hex Locknut
24	Sale! Quick View Part # 66421 – 5/8-11X4 EYEBOLT KIT ~~$9.71~~ $9.23 5/8-11X4 EYEBOLT KIT Part # 66421 - 5/8-11X4 EYEBOLT KIT quantity
25	Sale! Quick View Part # 91416 – HEX NUT_5/8-11 G5 ~~$2.53~~ $2.40 HEX NUT_5/8-11 G5 Part # 91416 - HEX NUT_5/8-11 G5 quantity
NS	Sale! Quick View Part # 28548 – BLADE LABEL KIT ULTRAMOUNT® ~~$29.08~~ $27.63 BLADE LABEL KIT ULTRAMOUNT® Part # 28548 - BLADE LABEL KIT ULTRAMOUNT® quantity

Standard Poly Blade Diagram

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

5/16‑18 x 1‑1/4 Hex Cap Screw G5

23

5/16‑18 Hex Locknut

24

25

NS
