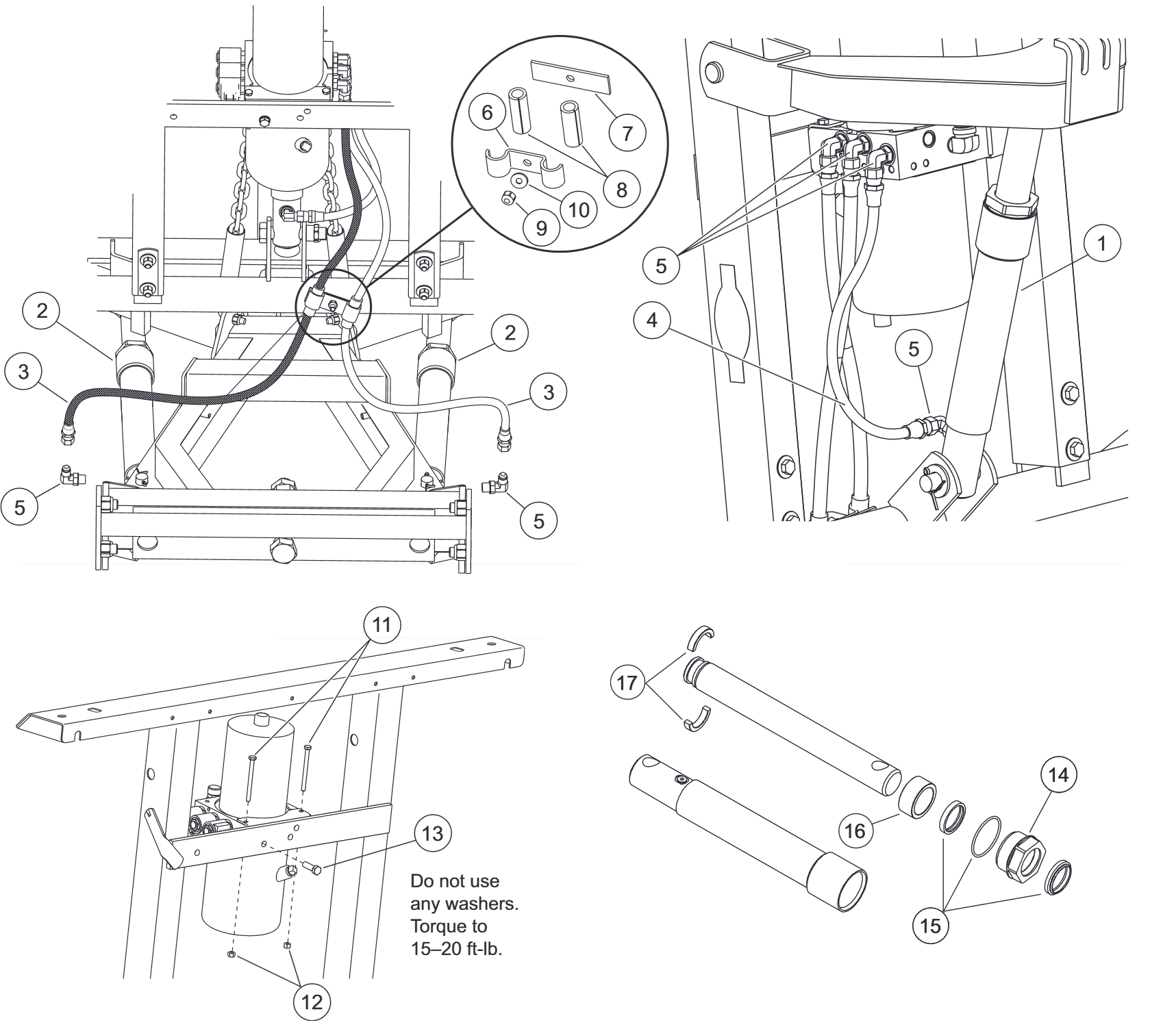

Standard & Pro Plow Hoses and Cylinders Diagram

Mouse over or Tap Diagram to Zoom

Add parts to cart from list

1

$189.98

RAM ASSY 1-1/2 X 8 KIT

2

$151.17

RAM ASSY 1-1/2 X 10

$282.86

RAM ASSEMBLY 1-1/2 X 12 KIT

3

$42.32

HOSE 1/4 X 42 W/FJIC ENDS

4

$27.01

HOSE KIT 1/4 X 16 W/FJIC ENDS

5

Sale!
$4.25 $4.04

ELBOW 90DEG-6 MO-RING/MJIC

6

HOSE CLAMP, DOUBLE

7

CLAMP BASE

8

SLEEVE

9

5/16-18 HEX LOCK NUT GB

10

3/8 FLAT WASHER

11

1/4-20X2-3/4 HEX CAP SCREW G5

12

1/4-20 HEX LOCK NUT GB

13

3/8-16X1 HEX CAP SCREW G5

14

Sale!
$22.52 $21.39

GLAND NUT ASSY 1-1/2

15

Sale!
$22.52 $21.39

GLAND NUT ASSY 1-1/2

16

Sale!
$9.72 $9.23

SPACER

17

$9.93

SPLIT BEARING KIT - 1-1/2"
