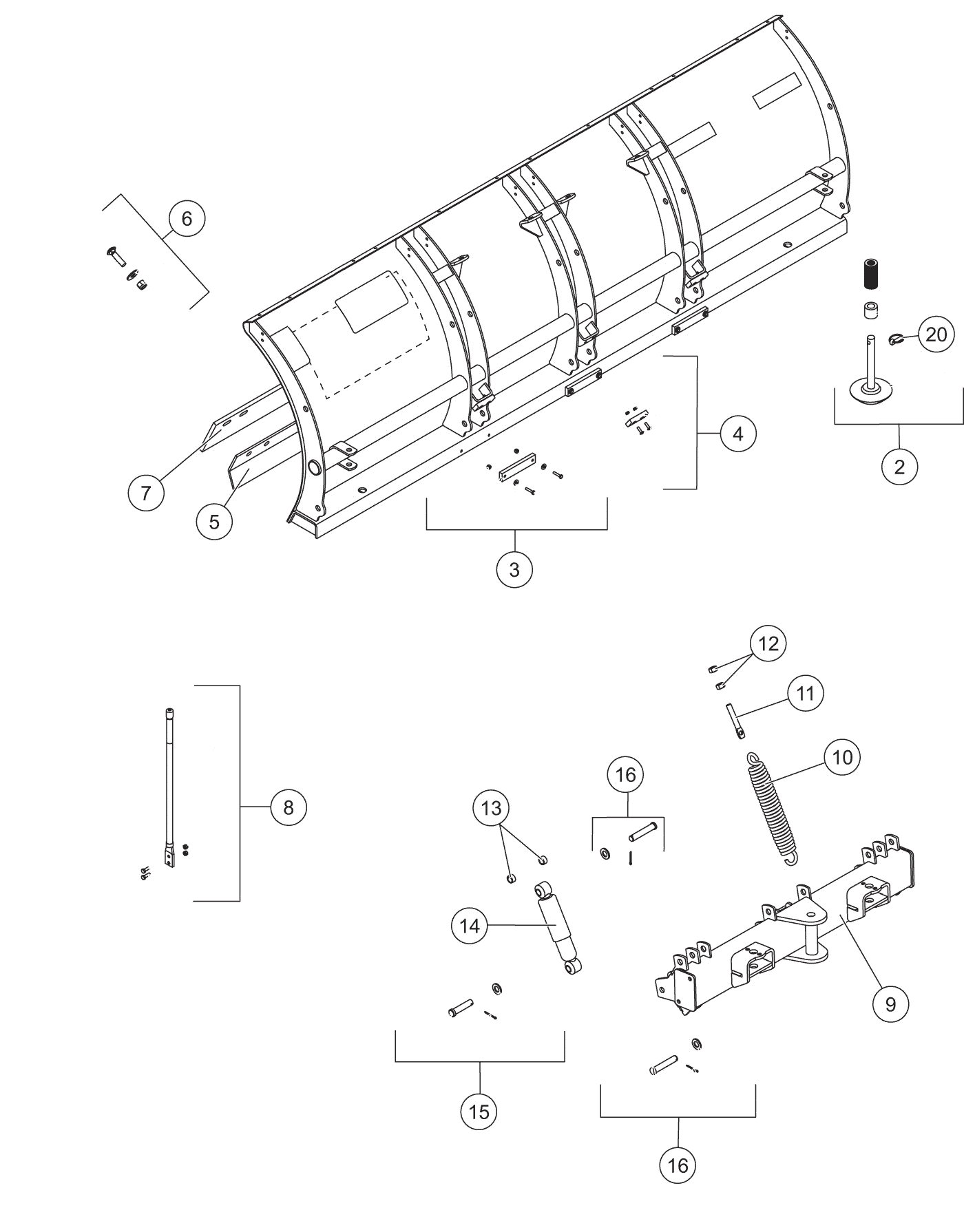

Pro Plus Blade & Quadrant Diagram

Mouse over or Tap Diagram to Zoom

Add parts to cart from list

2	Quick View Part # 49071 – HD DISC SHOE ASSY P $52.68 HD DISC SHOE ASSY P Part # 49071 - HD DISC SHOE ASSY P quantity
3	Quick View Part # 63977 – TRIP STOP KIT $14.79 TRIP STOP KIT Part # 63977 - TRIP STOP KIT quantity
4	Quick View Part # 63976 – PUSH STOP KIT $14.83 PUSH STOP KIT Part # 63976 - PUSH STOP KIT quantity
5	View Back Drag Edges
6	Quick View Part # 29351 – BOLT BAG, $28.32 BOLT BAG, Part # 29351 - BOLT BAG, quantity
7	View Cutting Edges
8	Sale! Quick View Part # 66515 – PUMP SHAFT SEAL ~~$6.89~~ $6.55 PUMP SHAFT SEAL Part # 66515 - PUMP SHAFT SEAL quantity
9	Quick View Part # 66930-1 – QUADRANT UT PP $899.54 QUADRANT UT PP Part # 66930-1 - QUADRANT UT PP quantity
10	Quick View Part # 23039 – TRIP SPRING $13.90 TRIP SPRING Part # 23039 - TRIP SPRING quantity
11	Quick View Part # 66421 – 5/8-11X4 EYEBOLT KIT $9.82 5/8-11X4 EYEBOLT KIT Part # 66421 - 5/8-11X4 EYEBOLT KIT quantity
12	Quick View Part # 66421 – 5/8-11X4 EYEBOLT KIT $9.82 5/8-11X4 EYEBOLT KIT Part # 66421 - 5/8-11X4 EYEBOLT KIT quantity
13	Quick View Part # 63211 – SPACER $2.51 SPACER Part # 63211 - SPACER quantity
14	Quick View Part # 63979 – SHOCK ABSORBER KIT – PP $133.11 SHOCK ABSORBER KIT - PP Part # 63979 - SHOCK ABSORBER KIT - PP quantity
15	Quick View Part # 93063K – CLEVIS PIN KIT 3/4 X 3-1/4 $6.75 CLEVIS PIN KIT 3/4 X 3-1/4 Part # 93063K - CLEVIS PIN KIT 3/4 X 3-1/4 quantity
16	Quick View Part # 95335 – CLEVIS PIN KIT 3/4 X 4 $15.93 CLEVIS PIN KIT 3/4 X 4 Part # 95335 - CLEVIS PIN KIT 3/4 X 4 quantity
20	Quick View Part # 93010K – LINCH PIN 7/16″X1-3/4″ 2 PACK $1.85 LINCH PIN 7/16"X1-3/4" 2 PACK Part # 93010K - LINCH PIN 7/16"X1-3/4" 2 PACK quantity
