Western Midweight Non-Fleet Flex Lift Frame & A-Frame Diagram

Mouse over or Tap Diagram to Zoom

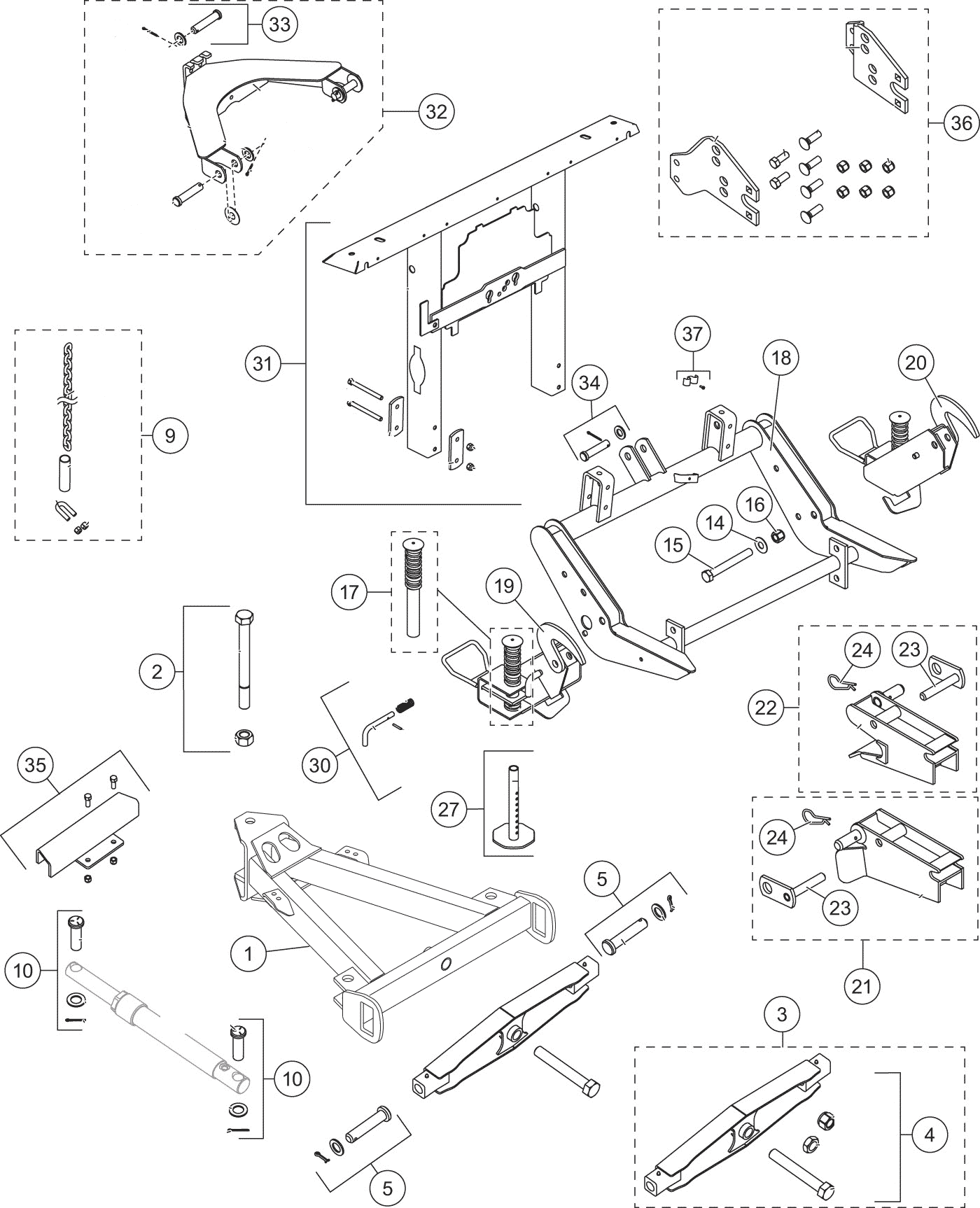

MidWeight Non-FleetFlex UltraMount Lift Frame and A-Frame Diagram, WesternParts.com

Add parts to cart from list

1	Quick View Part # 28592 – A FRAME – UT MIDWEIGHT $524.62 A FRAME - UT MIDWEIGHT Part # 28592 - A FRAME - UT MIDWEIGHT quantity
2	Quick View Part # 28590 – PIVOT BOLT KIT – UT MIDWEIGHT $49.41 PIVOT BOLT KIT - UT MIDWEIGHT Part # 28590 - PIVOT BOLT KIT - UT MIDWEIGHT quantity
3	Quick View Part # 67842-1 – PIVOT BAR KIT $197.06 PIVOT BAR KIT Part # 67842-1 - PIVOT BAR KIT quantity
4	Quick View Part # 67855 – PIVOT BOLT KIT $21.93 PIVOT BOLT KIT Part # 67855 - PIVOT BOLT KIT quantity
5	Quick View Part # 49645 – PIN KIT – PIVOT BAR $10.57 PIN KIT - PIVOT BAR Part # 49645 - PIN KIT - PIVOT BAR quantity
9	Quick View Part # 49033 – REPLACEMENT CHAIN ASSY $48.81 REPLACEMENT CHAIN ASSY Part # 49033 - REPLACEMENT CHAIN ASSY quantity
10	Quick View Part # 63973 – RAM PIN KIT $17.12 RAM PIN KIT Part # 63973 - RAM PIN KIT quantity
14	Sale! Quick View Part # 91147 – FLATWASHER_3/4 TYPE A NARROW ~~$0.65~~ $0.62 FLATWASHER_3/4 TYPE A NARROW Part # 91147 - FLATWASHER_3/4 TYPE A NARROW quantity
15	Quick View Part # 66451 – HEXCAPSCREW_3/4-10X6 G5 $11.72 HEXCAPSCREW_3/4-10X6 G5 Part # 66451 - HEXCAPSCREW_3/4-10X6 G5 quantity
16	Sale! Quick View Part # 91338 – HEXLOCKNUT_3/4-10 GB TOPRING ~~$4.18~~ $3.97 HEXLOCKNUT_3/4-10 GB TOPRING Part # 91338 - HEXLOCKNUT_3/4-10 GB TOPRING quantity
17	Quick View Part # 48523 – STAND PLUNGER ASSEMBLY $32.76 STAND PLUNGER ASSEMBLY Part # 48523 - STAND PLUNGER ASSEMBLY quantity
18	Quick View Part # 67903-1 – FRAME LIFT LOWER UT STD $709.68 FRAME LIFT LOWER UT STD Part # 67903-1 - FRAME LIFT LOWER UT STD quantity
19	Quick View Part # 72618 – STAND ASSEMBLY, DS $306.74 STAND ASSEMBLY, DS Part # 72618 - STAND ASSEMBLY, DS quantity
20	Quick View Part # 72617 – STAND ASSEMBLY, PS $306.74 STAND ASSEMBLY, PS Part # 72617 - STAND ASSEMBLY, PS quantity
21	Quick View Part # 76722 – RECEIVER KIT-DS $180.98 RECEIVER KIT-DS Part # 76722 - RECEIVER KIT-DS quantity
22	Quick View Part # 76718 – RECEIVER KIT-PS $180.98 RECEIVER KIT-PS Part # 76718 - RECEIVER KIT-PS quantity
23	Quick View Part # 42498 – RECEIVER PIN $19.09 RECEIVER PIN Part # 42498 - RECEIVER PIN quantity
24	Quick View Part # 91965K-1 – HAIRPIN COTTER 5/32″ $1.92 HAIRPIN COTTER 5/32" Part # 91965K-1 - HAIRPIN COTTER 5/32" quantity
27	Quick View Part # 67847 – STAND SHOE KIT $43.22 STAND SHOE KIT Part # 67847 - STAND SHOE KIT quantity
30	Quick View Part # 67844 – STAND LOCK PIN KIT $13.71 STAND LOCK PIN KIT Part # 67844 - STAND LOCK PIN KIT quantity
31	Quick View Part # 42351 – UPPER LIFT FRAME KIT $384.60 UPPER LIFT FRAME KIT Part # 42351 - UPPER LIFT FRAME KIT quantity
32	Quick View Part # 67850-2 – LIFT ARM KIT $128.17 LIFT ARM KIT Part # 67850-2 - LIFT ARM KIT quantity
33	Quick View Part # 68740 – 3/4 X 3-1/2 CLEVIS PIN KIT $9.56 3/4 X 3-1/2 CLEVIS PIN KIT Part # 68740 - 3/4 X 3-1/2 CLEVIS PIN KIT quantity
34	Quick View Part # 93063K – CLEVIS PIN KIT 3/4 X 3-1/4 $6.75 CLEVIS PIN KIT 3/4 X 3-1/4 Part # 93063K - CLEVIS PIN KIT 3/4 X 3-1/4 quantity
35	Quick View Part # 50676 – KIT, STACKING STOP $37.91 KIT, STACKING STOP Part # 50676 - KIT, STACKING STOP quantity
36	Quick View Part # 67843 – PIVOT PLATE KIT $206.02 PIVOT PLATE KIT Part # 67843 - PIVOT PLATE KIT quantity
37	Quick View Part # 49479-1 – HOSE BRACKET KIT $11.21 HOSE BRACKET KIT Part # 49479-1 - HOSE BRACKET KIT quantity
